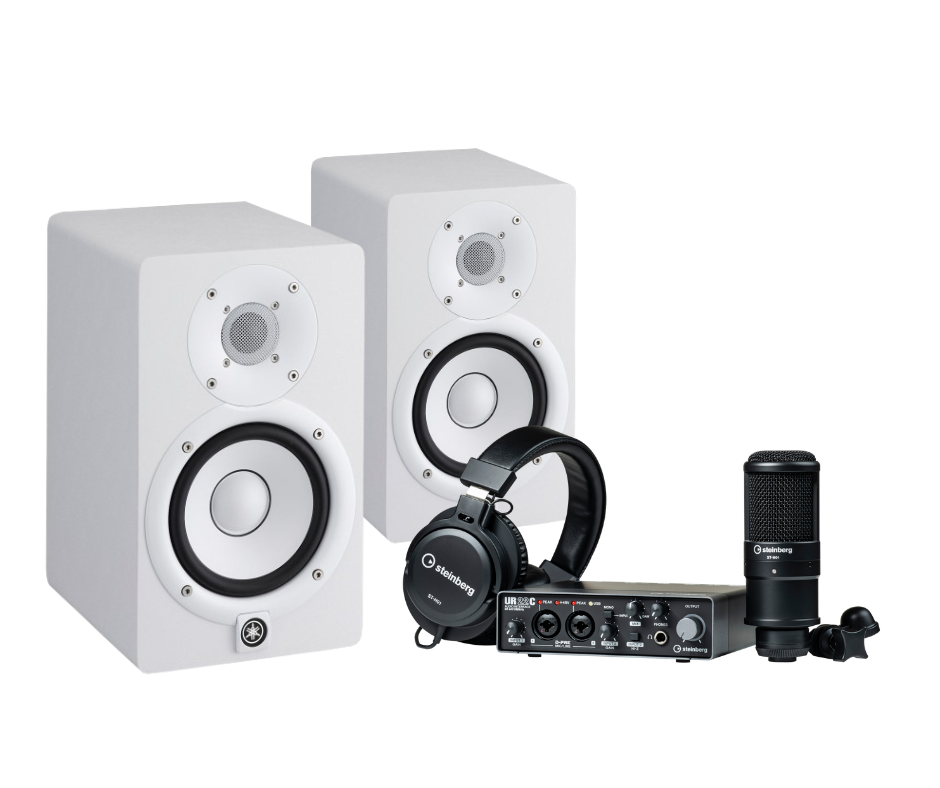

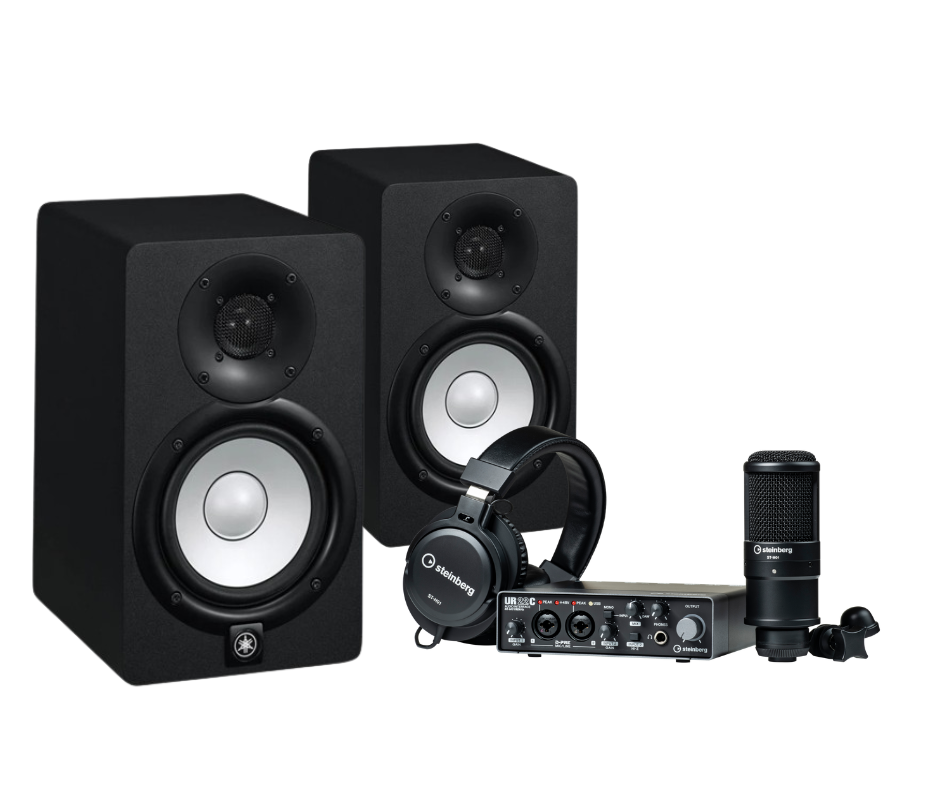

Yamaha HS8 and Steinberg UR22C PACK set

3200 d

For musiclovers, sho love listen and create quality music

HS8 studio monitor specifications:

2-way bass-reflex bi-amplified nearfield studio monitor with 8" cone woofer and 1" dome tweeter
38Hz - 30kHz (-10dB), 47Hz - 24kHz (-3dB) frequency response
75W LF plus 45W HF bi-amp system for high-performance 120W power amplification
ROOM CONTROL and HIGH TRIM response controls
XLR and TRS phone jack inputs accept balanced or unbalanced signals
Packaging single

Speaker type	2-way bi-amp powered studio monitor
Frequency response (-10dB)	38Hz - 30kHz
Frequency response (-3dB)	47Hz - 24kHz
LF component	8" cone
HF component	1" dome
Crossover	2kHz
Output power	120W (LF:75W, HF:45W)
Input sensitivity	-10 dBu/10k ohms
I/O connectors	XLR3-31 type (balanced), PHONE (balanced)
Power consumption	60W
Shape	Bass-reflex type
Cabinet material	MDF
Width	250mm
Height	390mm
Depth	334mm
Weight	10.2kg
Others	LEVEL control (+4dB/center click) , EQ: HIGH TRIM switch (+/- 2dB at HF) / ROOM CONTROL switch (0/-2/-4 dB under 500Hz)

Steinberg UR22C PACK ძspecifications:

AD/DA	32 bit
Maximum sample rate	192kHz
Total number of inputs	2
Total number of individual outputs	2
Total number of outputs	2
Microphone preamp	D-PRE
Microphone inputs	2
Inputs with line level	2
Input with HI-Z	1
Analog inputs Combo	2
Analog outputs TRS	2
Monitoring	Latency free monitoring with FX
Onboard DSP	SSP 3
True Integrated Monitoring with FX in Cubase	+
High-Pass filter	+
REV-X Reverb	+
Sweet Spot Morphing Channel Strip	+
Phantom Power	2
Connection Type	USB Type-C
Design	Desktop (1/3 19“, 1HU)
Headphone output	1
Casing	Full-metal casing
Width	159mm
Height	47mm
Depth	159mm
Weight	1000g
Power Supply	USB 3.0 bus-powered, USB Type-C bus-powered, External USB 5 V AC adaptor (not included)
