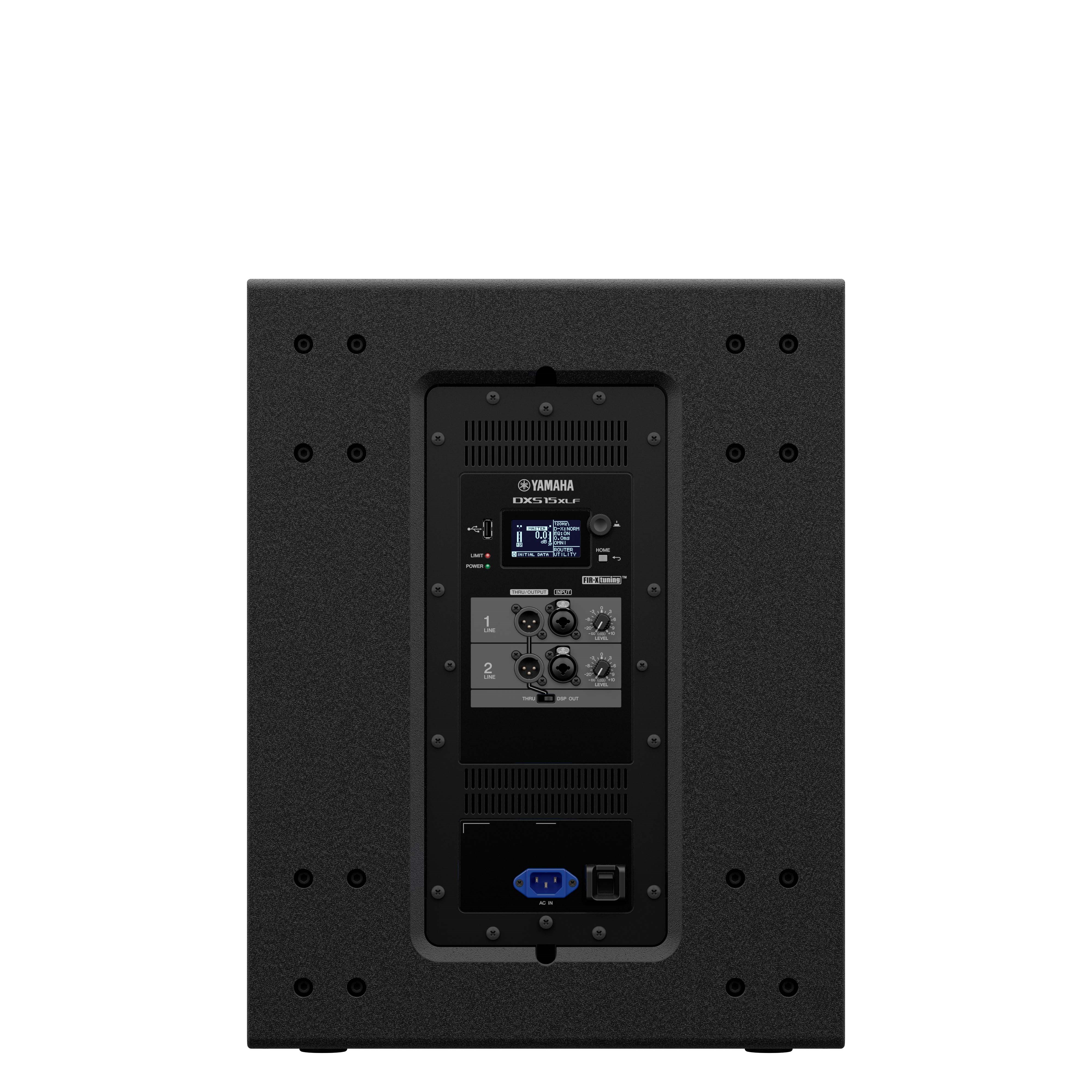

DXS15XLF
DXS15XLF
Product is not availablePerfectly suited for use with DZR full-range speakers, the DXS15XLF is a powered bass-reflex type subwoofer with extended low frequency, producing a best-in class maximum SPL of 136dB SPL with superb clarity and power.
| Speaker type | Powered Subwoofer, bass-reflex |
| Frequency range (-10dB) | 33Hz - 150Hz |
| LF component | 15" Cone, 4" Voice Coil, Ferrite magnet |
| Sampling frequency rate | 96kHz and FIR Filter |
| A/D D/A Converters | 96kHz AD/DA |
| Maximum output level (1m; on axis) | 136dB SPL |
| Dynamic rating | 1600W |
| Burst (20ms) | 1300W |
| Continuous | 1200W |
I/O Connectors | Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1/2: THRU or DSP OUT |
| Others | USB2.0 Host 5V 500mA for USB memory DATA storage/load |
| IEC AC inlet x1 (V-Lock) | |
| Amplifier class | Class-D |
| Cooling | Fan cooling, Variable speeds |
| Power consumption | 40W (Idle), 180W (1/8) |
| Handle | Aluminium die-cast, Side x2 |
| Width | 450მმ |
| Height | 587მმ |
| Depth | 600მმ |
| Weight | 40კგ |
